Microphone Selection Guide

Choosing the right microphone is not an easy task and choosing an inappropriate microphone can lead to measurement errors.

knowledge, resource center, articles, microphone selection guide

Selection guide

This easy microphone selection guide should help if you’re not sure which microphone you need.

Once the frequency range and sound level range of interest is defined, the next question to ask is, “Where will I use my microphone?”. For most uses, the type of sound field is the main parameter to consider.

The concept of the acoustic field is explained in our related article Measurement Microphones Explained and in the Brüel & Kjær Microphone Handbook - available for free download.

Transducer icon

LEARN MORE
BRÜEL & KJÆR
MICROPHONES

Microphone Sound Field

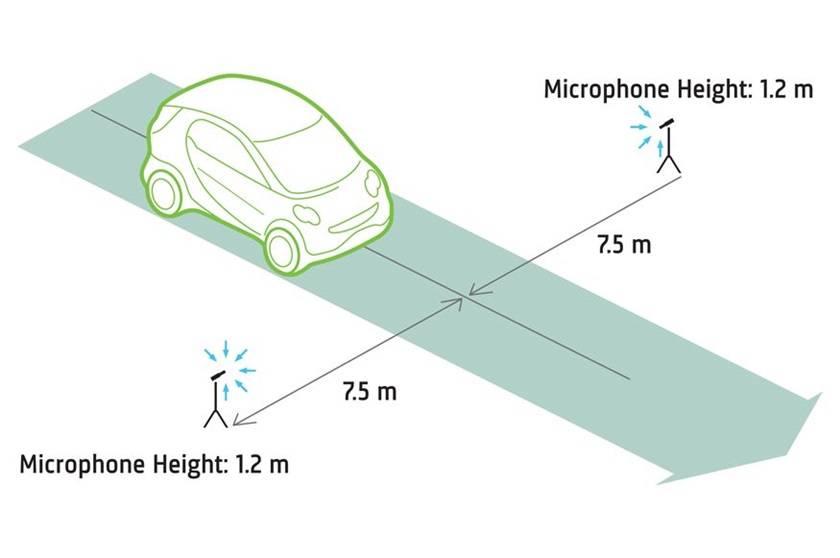

  • Free-field microphone: Measurements outdoors or in an anechoic chamber.
  • Diffuse-field microphone: Measurements inside - i.e., within a car cabin, you will need an (a ½-inch free-field would underestimate the sound pressure about 6 dB at 20 kHz)

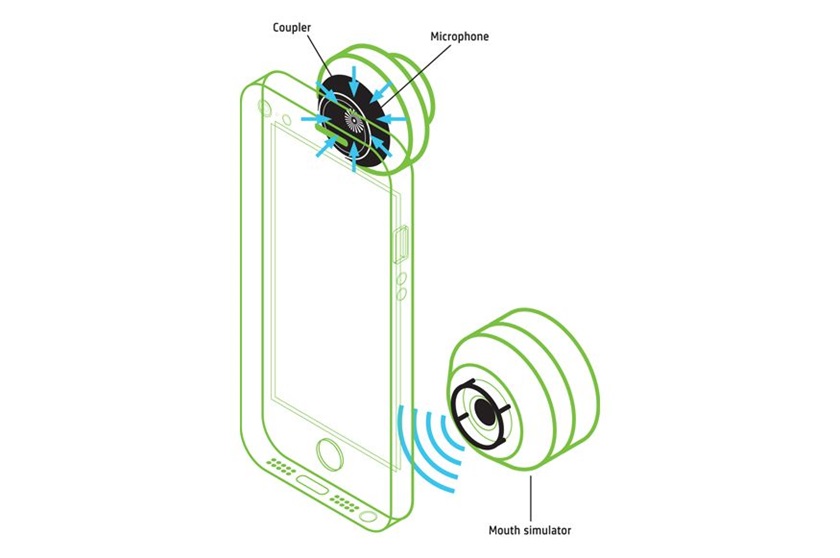

  • Pressure-field microphone: Measurements performed in small, closed couplers. As an example, to measure headphone performance, or close to hard, reflective surfaces.
knowledge, resource center, articles, microphone selection guide

Specialized Microphones

For specialized measurement applications, Brüel & Kjær provide several models to choose from:

  • Very high- and ultra-low frequency measurements require microphones specially designed for one extreme or the other - but never both. Microphone type 4964 and type 4193 are perfect for ultra-low-frequency measurements. However, for the very high-frequency end you will need a microphone like Type 4138 is needed (up to 140 kHz)
  • Extremely high-pressure sound levels require a robust microphone such as microphone type 4941. Inflow measurements may require a flush-mounted or small-footprint microphone like microphone type 4948 or type 4949
  • Particularly small spaces, awkward placements, or harsh environments can also require specialized microphones. Type 4182 is a good start – its design provides a very high acoustic impedance probe tip (to minimize the effect on the measurement) and it can be used to measure in temperatures up to 700°C
Transducer icon

LEARN MORE
MICROPHONE TYPE 4964
MICROPHONE TYPE 4193
MICROPHONE TYPE 4941
MICROPHONE TYPE 4948
MICROPHONE TYPE 4949
MICROPHONE TYPE 4182

Microphone Polarization

Prepolarized or externally polarized?

In most cases, once you have defined the application, you can refine and choose between

Finally, remember that choosing a microphone with a larger membrane will generally lower the inherent noise and increase the sensitivity, while microphones with a smaller membrane will be able to measure higher sound pressure levels, have an extended frequency range and be less sensitive to the angle of incidence of the incoming sound wave.

knowledge, resource center, articles, microphone selection guide
Future Technology 3D Concept: Automated Retail Warehouse AGV Robots with Infographics Delivering Cardboard Boxes in Distribution Logistics Center. Automated Guided Vehicles Goods, Products, Packages

Technical documentation: Microphone Handbook - Vol. 1: Theory

This volume provides background information on the Hottinger Brüel & Kjær microphone product range. It gives an insight into the theory behind the development of microphones and preamplifiers and explains the terminology used to describe these products

Download Handbook
