Using baseline Finite Element (FE) models, you can optimize your structural tests early in a project and then improve the Finite Element models using the enhanced test results.

BK Connect® offers powerful tools to gain better confidence in the test and simulation results and to improve essential engineering judgement skills, benefitting test engineers, analysts and management.

BK Connect offers one platform for test planning (pre-test analysis), structural measurements and analysis and FE model correlation.

FE models can be imported from leading FEA programs such as Nastran® (MSC, NX, NEi), ANSYS® and ABAQUS® into BK Connect Modal Analysis for performing test planning by investigating the simulation results in terms of frequency range of interest, mode density, mode order, critical modes, etc.

The simulation results can, furthermore, be used to optimize the number and locations of excitation and response DOFs, and an accurate test geometry decimated from the FE model is easily created. Once the modal test has been done, the results can be compared with the simulation results for validation.

BK Connect Correlation Analysis lets you go a step further by performing a complete visual and numerical correlation analysis to identify shortcomings in the modal tests and any areas of insufficient modelling quality in the FE models. It is a strong tool for designing optimal test conditions and evaluating different modelling strategies.



BK CONNECT TYPE 8421

Correlation Analysis Software

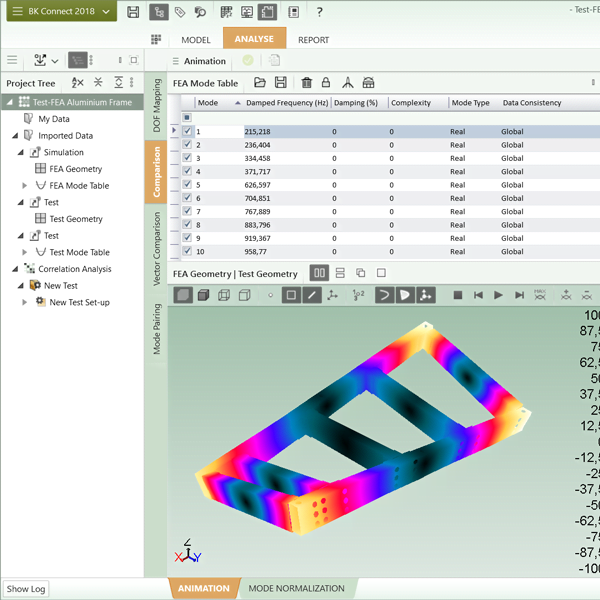

Correlation Analysis Software for correlating two modal models, typically consisting of a finite element model and a test model.



BK CONNECT TYPE 8411

Structural Measurements – Hammer and Shaker

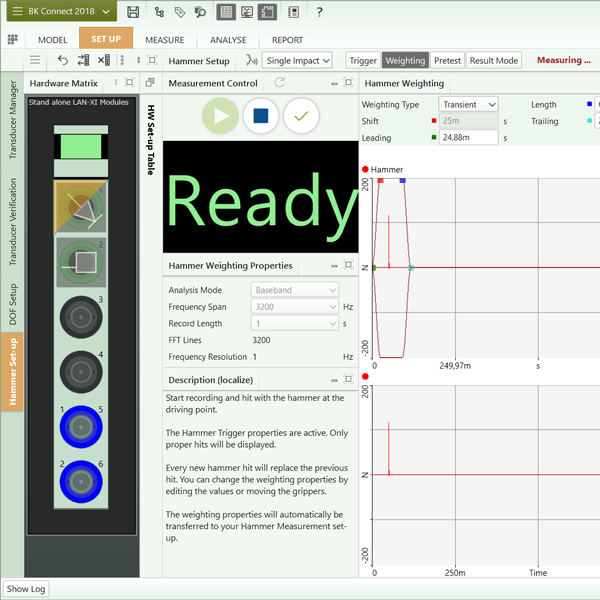

Intuitive software for geometry-guided real-time hammer and shaker measurements used for classical modal analysis.



TYPE 8412 | BK CONNECT

Advanced Sine Measurement Software

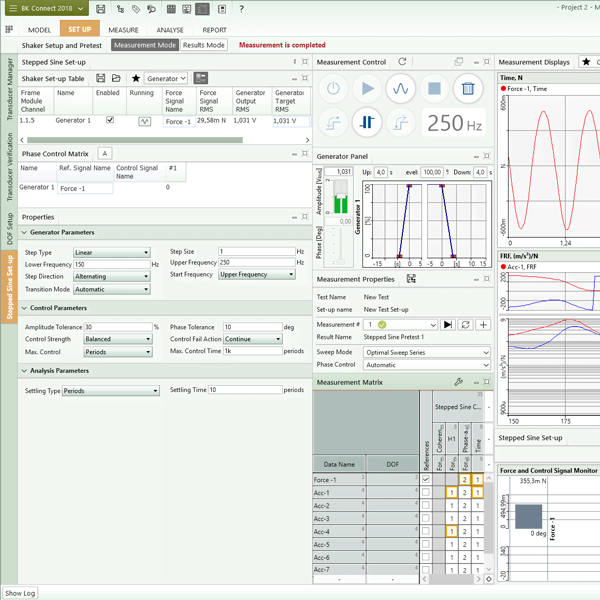

Advanced Sine Software for real-time measurements of frequency response functions (FRFs) using stepped sine excitation for linearity studies and classical modal analysis.



BK CONNECT TYPE 8420

Modal Analysis Software

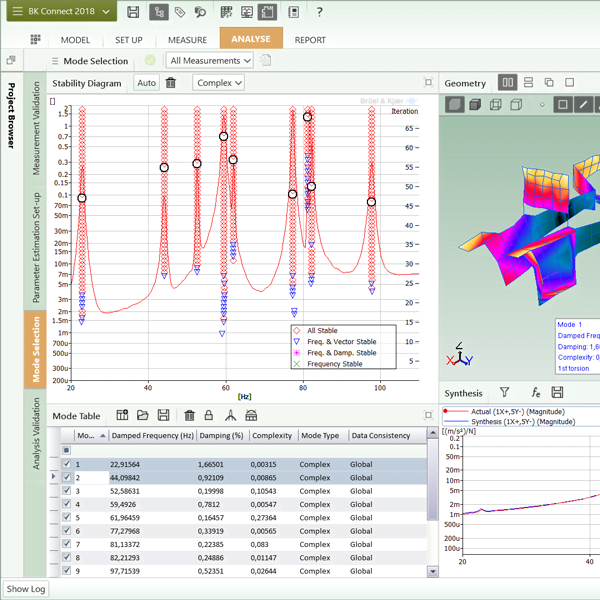

Provides powerful tools for creating geometries and a comprehensive set of analysis and validation tools for single-reference modal analysis.



BK CONNECT TYPE 8420-A

Advanced Modal Analysis

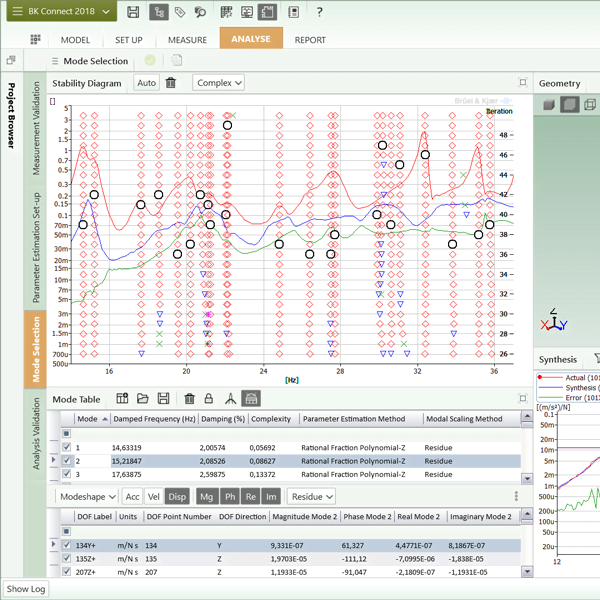

Advanced Modal Analysis software for creating geometries and a comprehensive set of analysis and validation tools for polyreference modal analysis.



BK CONNECT - TYPE 8410-C

ODS Analysis Software

Intuitive ODS analysis software for determining and visualizing the vibrational pattern of a structure under given operating conditions. The analysis software provides an in-depth understanding of a structure under operating conditions, required to improve the structural health.



PULSE TYPE 8760 + 8762

Operational Modal Analysis (OMA) Software

Operational modal analysis software for post-measurement modal analysis of structures under operating conditions without artificially exciting the structure.
